General description:
The 48Port Cat. 6 Unshielded Patch Panel, provides a 350 MHz connection to 48 x Gigabit RJ45 Ethernet ports. This 19 inch wide patch panel is well suited for home and SMB applications. Control cable clutter with included removable cable pass-through holders and cable ties. A writing surface above each port allows users to label respective connections.

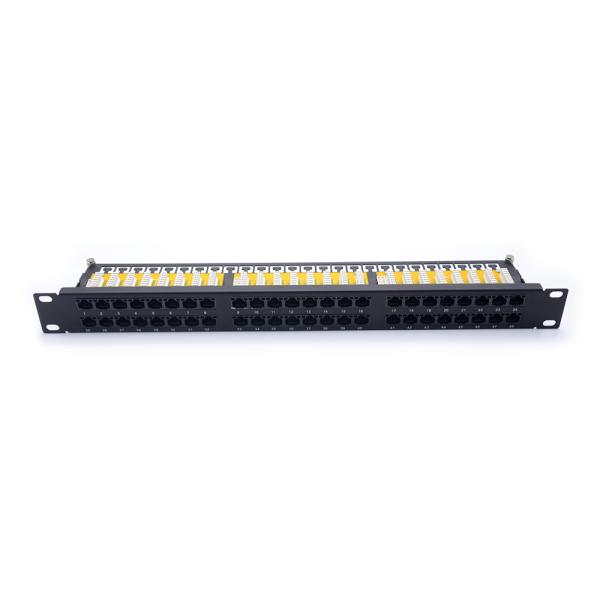

48 Port Cat.5e Cat6 UTP Patch Panel
• CAT5e UTP 48-port patch panel.
• Termination: Krone IDC.
• Available with T568A/B wiring pattern and meeting the requirement of CAT 6 standard.
• Design to mount to any standard 19" rack or cabinet.
• Meet or exceed the requirement of ANSI/TIA/EIA 568B.2.
• IDC contact material: phosphor bronze with tin/silver/gold plating over nickel.
• Contact material: phosphor bronze with 6 to 50 U" gold plating over nickel.
• Panel frame: Black or Ivory electrostatic powder-coated steel.
• Fitting for 22/24/26 AWG solid wires.
• Inserting duration: ≥ 750 times.
• Punching duration: ≥ 250 times.
• Insulation Resistance: 500M-ohm.
• Dielectric withstand voltage: 1000V AC RMS, 60Hz 1min.
• Housing material: ABS or PC, UL94-V0 or UL94-V2.
Technique Characteristics:
1. Entire high-cardon steel outer frame,with plastic powder cladding.
2. RJ45 jack Frame Material: PBT; golden plated phosphor bronze pins; pine; Shielding shell of the RJ45 jack: Brass housing with nickel- plated;IDC ciip:Tinned phosphor bronze pins.
3. Fitting for 22AWG23AWG and 24WGcables,Punching Duration:250 times. FCC ports inserting duration:750 times.
4. Cabling Sequence:T568A&B
5. Punching tool: Standard 110 tool for 110 IDC, Standard 110 tool or LSA tool for dual IDC.
6. Testing condition of transmitting capability: 100MHZ
Product features:
We are professional patch panel manufacturer in China. Our patch panel includes voice type 25port and 50port, data type(cat.5e,cat.6, cat.6a) with 6port 12port 24port 48port and 72port on option. We use good PCD board and IDC connectors (krone IDC, 110 IDC, Dual IDC for option) to ensure the characters for each product. Specially for 24port Cat5e.UTP patch panel ,we offer not only in flat configuration as normal but also offer angel patch panels configuration.
Each patch panel will be packed firstly with a plastic bag and then a firm inner box.Colorful inner box OEM is available.Usually we use a natural brown box for most of the clients.The patch panel we sell annual amount above 10000peices over the world.
