Brand Name : Melontel
Model Number : MT-5404
Certification : ISO9001
Place of Origin : Zhejiang, China (Mainland)
MOQ : 1000 Piece/Pieces (Min. Order)
Price : US $0.1-1 / Pieces
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 1000 Piece/Pieces per Day
Delivery Time : 5 days
Packaging Details : 1 PCS /Bag
Product name : Inline cable coupler
Application : Network
Classification : RJ45
Product weight : 8g
Product dimension : 34*22*15mm
Type : Single port type
Quick Details:
Description:
| Name : | Inline cable coupler |
| Country of origin : | Ningbo,China |
| Weight: | 8 g |
| Material : | Metal |
| Pin: | 8 pin |
| Shielding type: | STP |
| Product dimension: | 34*22*15mm |
| Packing : | 1 pcs/bag |
| OEM : | Welcome |


Introduction:
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.
|
|

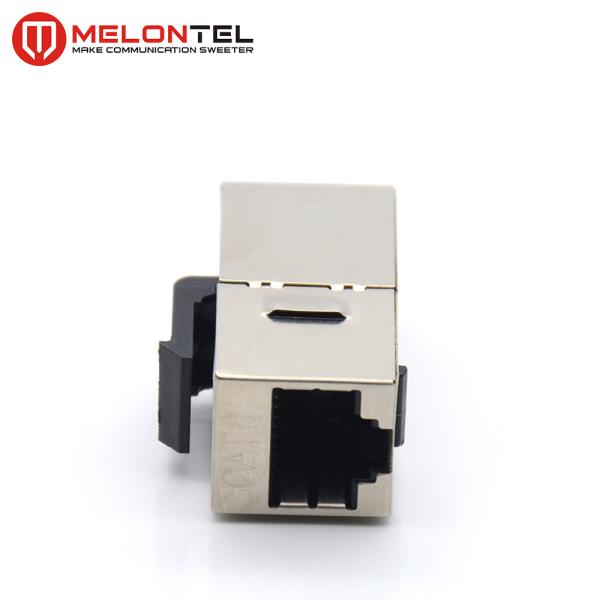

Network FTP Keystone Coupler MT 5404 Single Port Type For Patch Panel Images |
